Air operated Pinch Valves with flange connection

The air operated pinch valves with flange connection are available in the nominal diameters of DN25 to DN450. They are designed with a flange complying with DIN EN 1092 (PN10/16) or ANSI B 16.5-150lbs as standard.

The general description of air operated pinch valves covers the operation and the benefits of air operated Pinch Valves with a flanged connection.

To the online shop

Structure of an Air Pinch Valve with Flange Connection

The structure (of VF and VMC series pinch valves) encompasses the sleeve, a body and two flanges. The pinch valve sleeve is positioned in the centre of the air operated pinch valve's body; both of its ends are pressed in by the flanges, thus forming a compact unit.

At present AKO offers 3 different series with flange connection

The VMC series is available in nominal diameters DN25 to DN150.
The VMC series of air operated pinch valve with flange connection has a powder-coated aluminium body or an electro-polished stainless steel body, a fibre-reinforced pinch sleeve and 2 electro-polished stainless steel flanges.

The VF series is available in nominal diameters DN40 to DN250.
The VF series comprises a powder-coated aluminium body and a fibre-reinforced pinch sleeve. A choice of four different flange variations allows practically unrestricted use in various industrial environments.

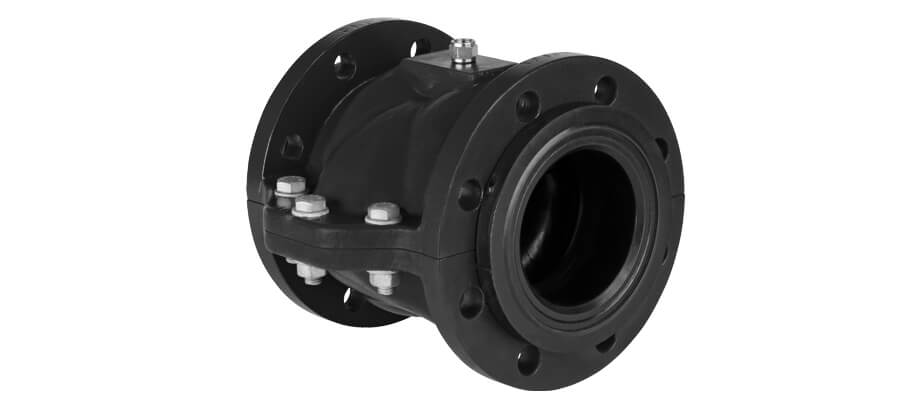

The RVA series is available in nominal diameters DN25 to DN450.
The RVA series has a two-part body (cast iron, aluminium or welded steel) and a fibre-reinforced pinch sleeve.



VMC Series
VF Series
RVA Series

Industrial sectors, possible applications:

  • Beverage industry
  • Farming
  • Food industry
  • Paper industry
  • Textile industry
  • Wood industry
  • Tobacco industry
  • Metal industry
  • Mining industry
  • Recycling industry
  • Waste industry
  • Printing industry

More information on possible applications and testimonials from AKO customers.
